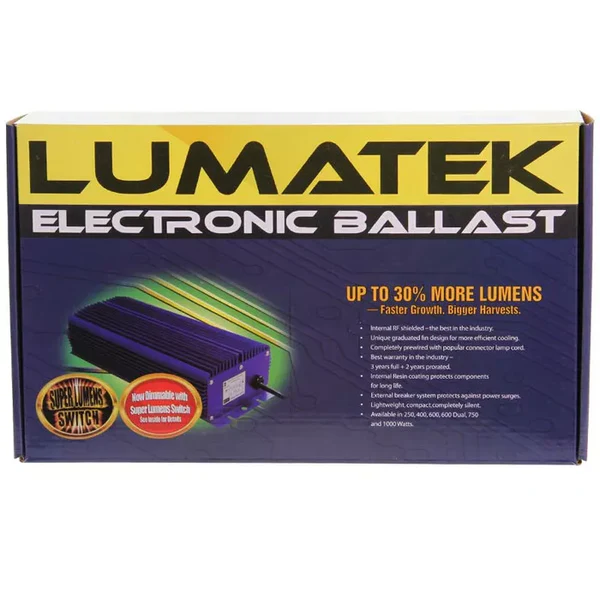

LUMATEK Electronic Ballast 400W
€125,00
Lumatek 400W digital ballasts are dimmable and produce consistent stable light output which is ideal for pharmaceutical agriculture, controlled-environment horticulture and other uses where precise regulated output is essential.
Lumatek ballasts are microprocessor-controlled and feature intelligent start with sequential switching to light lamps faster with safe management of inrush current and balanced load across ring circuit to avoid tripping breakers. When dimming or boosting lamps the ballast uses the ‘soft dim feature’ to change power output gradually in order to protect the lamp.
This ballast is small and compact in design, operates silently with no noisy fan and only weighs 2.5Kg making it easy to handle and mount.
Key features :
• High efficiency, energy-saving
• Completely silent and maximum heat dissipation
• RF shielding
• LED status indicator
• Full protection
• Soft start technology
• Random start technology
• Automatic frequency adjustment
• Re-strike system
• 5 years warranty
• CE Certification
• EMI suppression certified
Key Specifications :
Product Code: LUMB0002
Voltage: 230V 50/60Hz
Input Current Max (A): 1.90A
Input power: 440W
Output power: 420W
Power factor: >0.99
Voltage range: 175 to 275V
THD: <8%
Lamp CCF: <1.7
Operating frequency: high frequency
Envirement temperature for full load operation: -25 to 40°C (-13 to 104°F)
Enclosure temp. rise ((Δt): 29°C (84.2°F)
Env.IP require: >IP23
Humidity: capable of operating in relative humidity of 0% to 90%, non-condensing
Weight: 2.5Kg
Dimensions: 230 x 114 x 81mm
| Weight | 2500 g |
|---|---|
| Dimensions | 23 × 11,4 × 8,1 cm |
